Pipe Insulation To Prevent Burst Pipes: Where It Matters Most

Every winter, the bursts follow the same map: not the pipes in the warm middle of the house, but the ones skirting its cold edges. Pipe insulation is the cheapest line of defence those edge pipes can get — but only if it lands on the right runs, in the right thickness, before the cold arrives. Here is where it matters most, and where it needs help.

How Does Pipe Insulation Stop A Freeze?

Pipe insulation slows heat loss; it does not add heat. Water in a pipe freezes when the pipe wall sits below freezing long enough for ice to form and block the line, and the pressure that ice creates — water expands by about 9% as it turns to ice — is what splits the pipe. A foam sleeve or fibreglass wrap delays that heat loss, stretching the time a pipe can sit in cold air before its water reaches freezing point.

That delay is the whole game. Most cold snaps bite hardest for a few overnight hours. An uninsulated pipe in a draughty crawl space might freeze in two of those hours; the same pipe insulated may hold out until sunrise warms the space. Insulation turns marginal nights into non-events — but it cannot hold off a long, deep freeze alone, which is why placement and backup measures matter.

Which Pipes Should You Insulate First?

Insulate first the pipes that meet cold air: runs in exterior walls, crawl spaces, unheated basements, garages, and attics. In Bartlett, IL — which averages 152.6 freeze days a year with a January average low of 13.7°F (NOAA 1991–2020 normals) — that list covers most of the plumbing in an older home. Outdoor hose bibs and the lines feeding them belong at the top of the list too.

Rank by exposure, not by convenience. A pipe against an outside wall freezes before one in an interior partition; a crawl-space line in moving air freezes before one in a still basement corner. Homes in Aurora, IL and Akron, OH share the same pattern: the failures cluster on north-facing exterior walls and over unheated garages, exactly where insulation is thinnest or missing.

What Kind Of Insulation Works On Pipes?

The standard choices are foam sleeves, fibreglass wrap, and rubber insulation for tight or damp spots. Sleeves are sized to the pipe itself — copper pipe, PEX pipe and CPVC pipe all take standard sizes, while PVC pipe on outdoor lines and older galvanized steel pipe may need the next size up to close over corrosion and fittings. Foam sleeves — pre-split tubes that snap over the pipe — suit straight runs and most DIY work; thickness matters more than brand, and joints, elbows and valves need wrapping too, because a bare fitting in an insulated run is still a bare fitting in the cold.

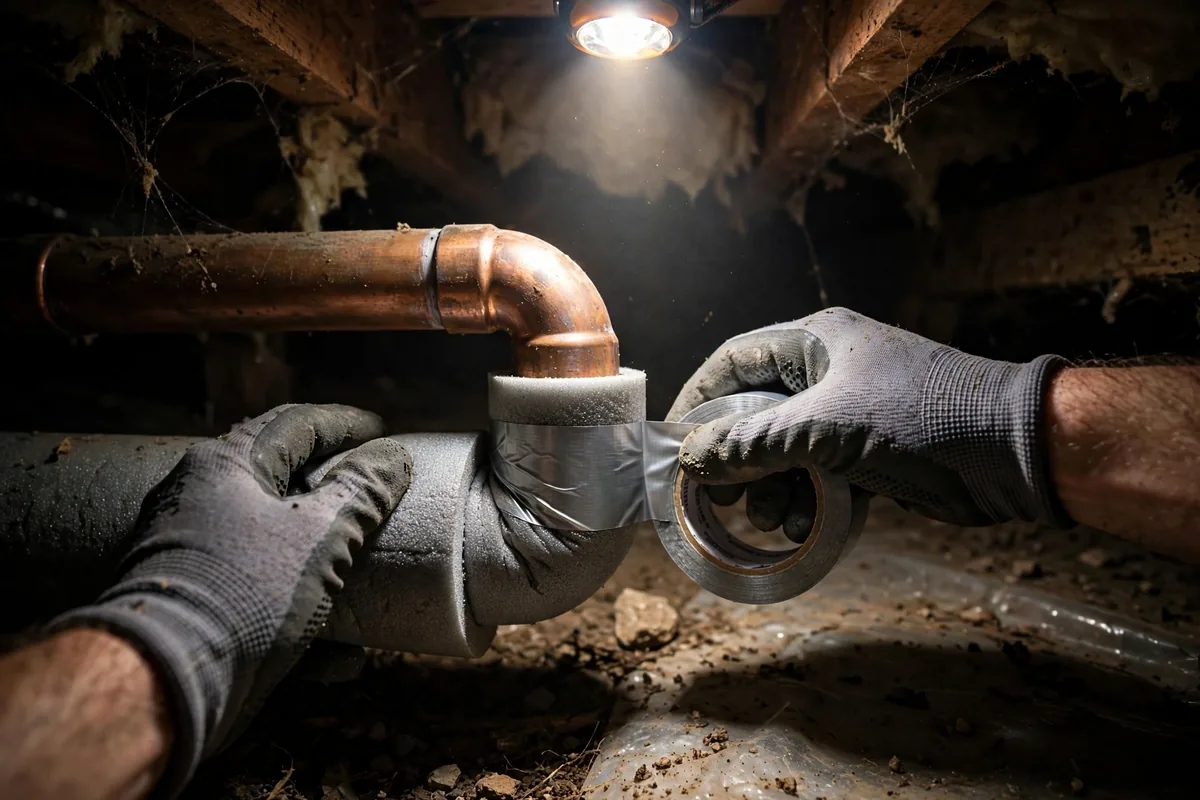

Fit is the unglamorous detail that decides whether insulation works. Gaps at seams, crushed sections, and sleeves sized loose enough to slide all leak heat. Tape the seams, cover the elbows with mitred pieces or wrap, and insulate the line right up to the water heater and the wall penetrations. Cold air does not read the label on the tube; it finds the inch you skipped.

Insulation is only as good as its worst gap — the cold finds the bare elbow, not the covered run.

Where Does Heat Tape Fit In?

Heat tape — an electric heat cable taped along the pipe and plugged in before cold weather — is the active backup for the runs insulation alone cannot save. Unlike insulation, it adds heat, holding the pipe above freezing through long cold spells. It suits exposed crawl-space lines, mobile home underfloor runs, and any pipe with a history of freezing. Lines under a concrete slab are the exception to the whole topic: the ground insulates them, and it is the exposed entry and exit runs that need the protection.

Use it exactly as its maker directs: correct length, no overlaps unless the product allows them, thermostat-controlled models preferred, and never buried under thick insulation unless rated for it. In Illinois and Ohio, where January lows average in the teens across many of our cities, heat tape on the two or three worst runs is cheap insurance beside a burst repair.

What Else Stops Pipes Freezing Besides Insulation?

Sealing cold air out does as much work as wrapping pipes. Caulk and foam the gaps where pipes pass through exterior walls and foundations, close crawl-space vents in winter where the design allows, and keep garage doors shut on cold nights. Inside, opening cabinet doors under sinks on exterior walls lets warm room air reach pipes that insulation cannot fully protect.

During a hard freeze, the classic tactics still earn their place: keep the house heated evenly, and let a vulnerable tap drip slowly — moving water resists freezing and relieves pressure. Know where your main shut-off valve is before you need it; insulation lowers the odds, and preparation covers the rest.

When Is Insulation Not Enough On Its Own?

Insulation is not enough when the pipe sits in truly unheated space through a long sub-zero stretch, when the line has frozen before, or when wind drives cold through a vented crawl space for days. Amarillo, TX surprises people here: it averages 116.9 freeze days a year (NOAA normals), and its exposed lines freeze in snaps that catch homeowners who assumed Texas pipes were safe.

It is also not a repair. A pipe that has already frozen and bulged, or burst and been patched, needs a pro's judgement, not a foam sleeve. If a run freezes every winter despite insulation, the durable fixes are rerouting it into warm space or adding heat tape — a pro can tell you which after seeing the run.

Alvada's exposed rural lines are the case in point for everything above; when prevention loses anyway, the emergency burst pipe repair in Alvada page covers the response.
